How to extract emodin from Aloe vera ?

Extracting emodin from Aloe vera involves a systematic process that isolates this bioactive anthraquinone compound while maintaining its structural integrity and therapeutic properties. The standard method begins with ethanol-based extraction from dried Aloe barbadensis leaves, followed by filtration, concentration, and purification through chromatographic separation. Aloe Emodin Extract, when properly processed, yields an orange-yellow crystalline powder with purity levels reaching ≥98%, making it suitable for pharmaceutical, cosmetic, and health supplement formulations. This high-purity standardization ensures consistent bioavailability and regulatory compliance across international markets.

Understanding Aloe Emodin and Its Importance

Aloe emodin (1,8-dihydroxy-3-hydroxymethyl-anthraquinone) is found naturally in the upper leaf rind of Aloe vera plants. It is one of the most pharmaceutically active parts of this plant type. In contrast to the inner gel, which is high in polysaccharides, emodin is mostly found in the latex layer between the rind and gel. This is where it protects the plant from microbes.

Chemical Profile and Natural Occurrence

The molecular formula for Aloe emodin is C15H10O5, and its molecular weight is 270.24 g/mol. It has a unique orange-yellow color because of the conjugated double bond system in its anthraquinone structure. The substance doesn't dissolve well in water, but it does dissolve easily in ethanol, alkaline solutions, and organic solvents. This directly affects the choice of extraction method.

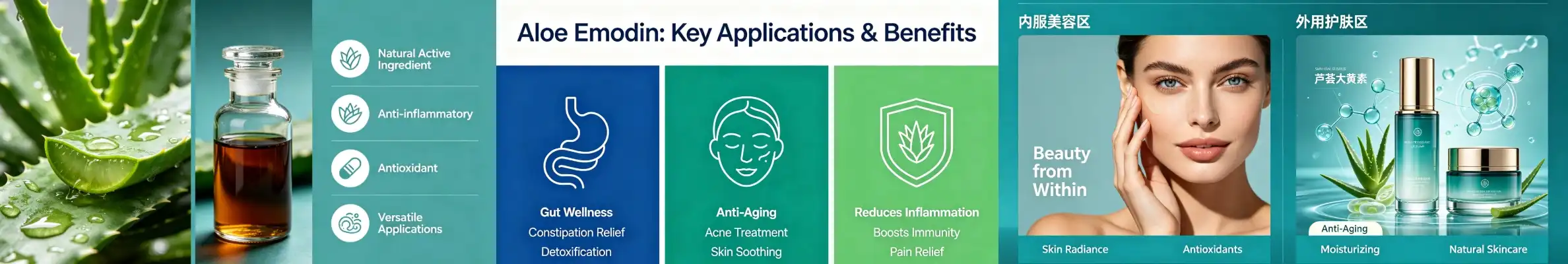

Therapeutic Properties Driving Market Demand

The pharmaceutical and nutritional companies are putting more and more emphasis on Aloe emodin because it has been shown to reduce inflammation by stopping the release of cytokines like TNF-α and IL-6. Researchers have found that it can change the movement of intestines by stimulating the smooth muscle in the gut. This is why it has been used for a long time to treat constipation. New studies are also looking into its possible uses in dermatology, where it shows promise in treating eczema and speeding up wound healing by controlling the growth of keratinocytes.

Quality Standards Critical for B2B Applications

Companies that make things need standard extracts that meet strict requirements instead of whole-plant materials that can be different. To be pharmaceutical-grade, Aloe emodin needs to be at least 98% pure, as shown by HPLC analysis, with no more than 1% ash and no more than 0.5% moisture. These factors make sure that the stability from batch to batch is maintained, which is necessary for large-scale production of functional drinks, food supplements, and cosmetics. In the EU and the US, regulations require a lot of paperwork, like Certificates of Analysis (COA), MSDS data sheets, and tests for residual solvents. Only high-quality extraction methods can safely provide this paperwork.

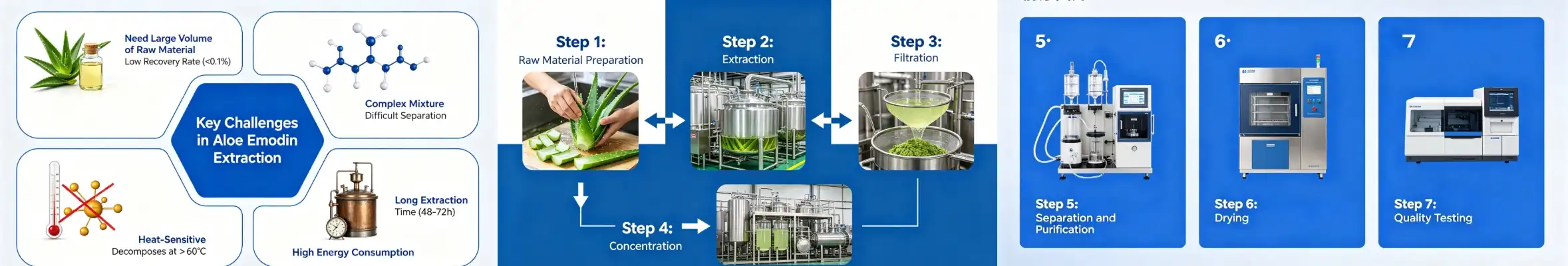

Challenges in Extracting Emodin from Aloe Vera

Problems with the technology used to extract emodin have a big effect on the quality and output of the finished product, which is especially important for large-scale operations. R&D teams can better judge the skills of suppliers when they understand these problems.

Yield Optimization and Recovery Rates

About 0.02% to 0.05% of the dry weight of raw Aloe vera leaves is emodin. This means that a lot of biomass is needed to make enough Aloe Emodin Extract for industrial use. Recovery rates of less than 60% are common with traditional soaking methods, which wastes both raw materials and processing resources. Because the chemical is inside the leaf structure, the cell wall needs to be broken down without breaking down the target molecule. This is a tricky mix that affects how well the extraction works overall.

Contamination and Purity Concerns

Aloe plants naturally contain several anthraquinone derivatives, such as aloin, Aloe emodin, and barbaloin, which are extracted along with the target chemical. To separate emodin from these structurally related molecules, you need to use complex chemical methods. There are risks of contamination from agricultural waste, heavy metals, and microbes, especially when getting food from places where farming methods aren't always reliable. These flaws make products less safe and make it harder for foreign markets to follow the rules.

Temperature Sensitivity and Degradation

When emodin is subjected to temperatures above 230°C during the concentration and drying stages, it breaks down. Oxidation of hydroxyl groups happens when heat is applied for a long time. This lowers bioactivity and makes unwanted by-products. Because of this, controlled processing environments with precise thermal tracking throughout the extraction processes are needed. This is the infrastructure that sets professional makers apart from basic processors.

Limitations of Conventional Methods

Using methanol or acetone for traditional solvent extraction at room temperature means that the mixture has to sit for 48 to 72 hours, which increases the cost of operations and the risk of poisoning. A lot of the emodin is left behind because these ways have trouble getting through the waxy skin layer. Also, regular filter methods don't get rid of small particles, so they need extra steps of clarification that slow down the whole process and make it less profitable to make on a big scale.

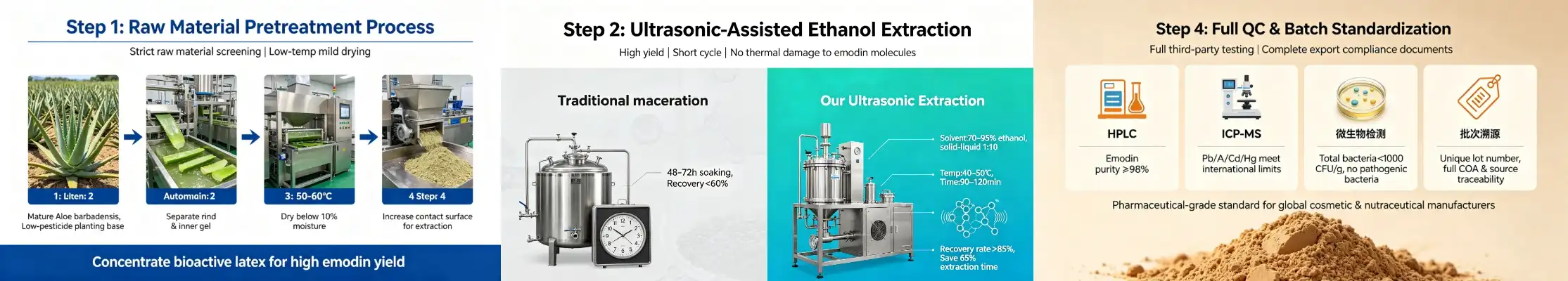

Step-by-Step Modern Extraction Process for Aloe Emodin

Modern industrial extraction uses a multi-step process that keeps molecules intact while increasing output. We use this method at our production plant in Shaanxi, which has high-tech tools and quality controls to make sure the results are pharmaceutical-grade.

Raw Material Selection and Preparation

The process starts with carefully choosing mature Aloe barbadensis leaves that are picked from growing areas with good soil and little pesticide contact. The leaves are washed well to get rid of dirt on the surface, and then mechanical peeling systems are used to separate the outer rind from the inner gel. After the rind is gathered, it is dried slowly at 50 to 60°C until the moisture level goes below 10%. This concentrates the bioactive compounds, including those used for Aloe Emodin Extract, and makes the next extraction steps easier.

Ethanol-Based Extraction Protocol

The dried Aloe rind shrinks into particles that are 20 to 40 mesh, which makes more surface area for the fluid to touch. When the material is mixed with 70–95% ethanol at a solid-to-liquid ratio of 1:10, the conditions are perfect for emodin to dissolve. Ultrasonic-assisted extraction is done on this mixture at 40–50°C for 90–120 minutes. High-frequency sound waves break up cell structures and speed up chemical release without damaging the combination thermally. When compared to standard maceration, the ultrasonic method cuts the time needed for extraction by about 65% while increasing recovery rates to over 85%.

Separation and Concentration

After being extracted, the liquid phase goes through vacuum filtering through different types of filter media to get rid of any solid residues or bits that are still in the liquid. The cleared extract goes into rotating evaporation systems that work at low pressures (0.06-0.08 MPa) and temperatures below 65°C. This concentrates the solution without breaking it down due to heat. This gentle way of concentrating keeps the delicate structure of the anthraquinone, which keeps it chemically stable and biologically active.

Purification and Crystallization

Column chromatography is used with silica gel or macroporous resin as the stationary phase to separate the pure extract. Gradient elution with rising ethanol amounts separates emodin from co-extracted anthraquinones based on differences in their polarities. The emodin-rich parts that have been cleaned up are mixed together and put through controlled cooling crystallization. Lowering the temperature to 4–8°C helps make high-purity crystals. The crystals are collected by centrifugation, washed with cold ethanol to get rid of any remaining impurities, and dried in a vacuum to keep them from oxidizing.

Quality Control and Standardization

We do a lot of tests on our finished product, such as HPLC purity verification (target: ≥98%), melting point determination (specification: 223-224°C), and particle size analysis (100 mesh standard). ICP-MS is used for heavy metal screening to make sure that levels of lead, arsenic, cadmium, and mercury are within the standards set by the international community. Testing for microbes shows that the total plate counts are less than 1,000 CFU/g and that there are no harmful organisms present. Each batch of products is given a unique lot number and full paperwork that can be used to track them back to the source. This meets regulatory filing requirements and customer quality assurance processes.

Comparison of Aloe Emodin Extraction Methods and Products

In order to choose the right extraction result, you need to know what makes each product form unique and how they fit with different production processes.

Extract Concentration versus Whole Plant Materials

Pure Aloe Emodin Extract is much more effective than whole Aloe products, with active compound amounts of over 980 mg/g, while raw plant material has less than 0.5 mg/g. This concentration difference reduces the amount needed in formulations by about 95%, lowering shipping costs, storage space requirements, and finished product size. Standardized extracts are especially helpful for companies that make health supplements because they allow accurate labeling claims about active ingredients—something whole plant powders cannot provide due to natural variability.

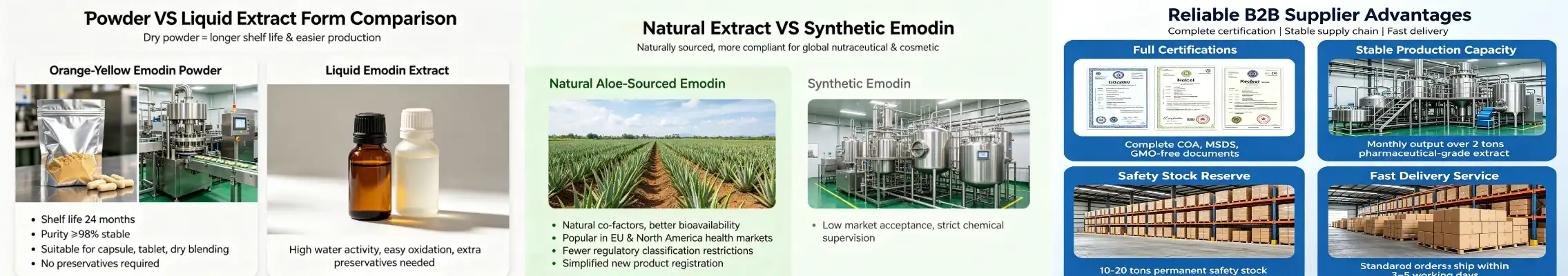

Powder versus Liquid Extract Forms

Compared to liquid extracts, our orange-yellow fine powder version is more stable and lasts longer on the shelf. The powder form gets rid of the water activity that helps microbes grow and chemicals break down. It stays ≥98% pure for 24 months when kept properly (in sealed containers, out of the light, and at temperatures below 25°C). Powder handling makes manufacturing processes easier because it can be done along with dry blending, capsule filling, and tablet pressing without the need for special tools for handling liquids or preservatives.

Natural Extraction versus Synthetic Alternatives

Synthetically made emodin is always available, but naturally produced products still have co-factors and trace elements that may improve bioavailability and medicinal results. Label promises that something is "naturally sourced" are becoming more and more popular, especially in the health product markets in North America and Europe. Natural extracts also get around the legal classification problems that synthetic chemicals have in some places. This makes the paperwork needed to get into the market easier and cuts down on the time it takes to get approval for new products.

Sourcing Aloe Emodin Extract for B2B Procurement

Strategically choosing a provider has a direct effect on the consistency of product quality, following the rules, and the long-term security of the business. Procurement managers should look at possible partners based on more than just unit price.

Essential Certifications and Documentation

Manufacturers with a good reputation keep their certifications up to date. These include ISO 9001 for quality management systems, ISO 22000 or HACCP for food safety standards, and Kosher and Halal for specific market groups. These approvals show that operations are disciplined and that handling standards have been checked by a third party. It's also important to have complete product paperwork packages that include Certificates of Analysis with test results unique to each batch, Material Safety Data Sheets (MSDS), allergen labels, and GMO-free statements. These make it easier to clear customs and meet customer legal requirements.

Production Capacity and Supply Reliability

Scale of production has a direct effect on the stability of the supply chain. We keep 10–20 tons of safety stock on core goods like high-purity Aloe Emodin Extract. This way, we can send standard orders within 3–5 working days without sacrificing quality because of rushing production. Our constant countercurrent extraction lines can make more than 2 tons of pharmaceutical-grade extract every month. This means that we can meet both ongoing supply deals and sudden demand spikes that often happen when new products come out or during busy times of the year.

Customization Capabilities and Technical Support

Modern providers allow for easy customizing, such as changing the extraction ratio, particle size (from 80 to 120 mesh), and purity grade (90%, 95%, or 98%) to meet the needs of any formulation. For R&D validation testing, we offer sample sizes ranging from 100g to 1 kg. This lets formulation engineers do stability studies and bioavailability tests before committing to bulk sales. Technical paperwork support includes help with preparing regulatory filings, data on suitability for common excipients, and formulation suggestions based on the intended use. These are the extra services that set strategic partners apart from transactional vendors.

Pricing Structure and Order Flexibility

Clear price plans take into account different levels of purity, the number of orders, and the level of customization needed. For normal specs, the minimum order quantity is usually 25 kg. At 100 kg, 500 kg, and ton-scale commitments, prices go down gradually. Lead times depend on how complicated the specifications are. Stock items ship within 3–5 business days, but high-purity orders that are customized need 10–15 days for production and quality checks. For regular customers, payment terms like net-30 or net-60 are common. For foreign deals, letter of credit is accepted, which makes managing cash flow easier and lowers risk.

Conclusion

To get Aloe Emodin Extract out of Aloe vera successfully, you need to know how to use ethanol-based solvent systems, how to control temperature, and how to follow multi-stage cleaning methods. Using ultrasonic extraction and chromatographic separation in modern industrial processes, it is possible to get purity levels above 98%, which meet pharmaceutical-grade standards needed for controlled markets. Quality differences between providers aren't just caused by price differences; they're also caused by where the raw materials come from, how well the equipment is made, and how strict the quality control is. When a business buys something, they should think about cost, but they should also check the licensing, be clear about the supply chain, and be able to customize the product. When you work with makers who can show that they have complete paperwork, enough inventory reserves, and quick technical support, you can avoid formulation delays and regulatory problems and make sure that all batches are the same over long-term supply agreements.

FAQ

Q1: What purity level is appropriate for dietary supplement applications?

A: Health supplement formulas usually need emodin substances that are at least 95% pure, which can be shown by HPLC analysis. This standard makes sure that the concentration of active compounds is high enough to work and low enough to be cost-effective for market goods. For pharmaceutical uses with specific therapeutic claims, the product must be at least 98% pure to meet regulatory requirements and keep leftover chemicals from interfering with clinical studies as little as possible.

Q2: How can buyers verify supplier claims on extract quality?

A: Ask for full Certificates of Analysis that include HPLC chromatograms as well as rates of purity. Check the heavy metal test results using ICP-MS, making sure that the measurement limits are clear. Ask for validation results from third-party labs that are recognized testing centers. When you start working with a legitimate supplier, they will gladly provide batch-specific paperwork and support audits of manufacturing sites.

Q3: What are typical contraindications for emodin-containing products?

A: Because emodin can make you go to the bathroom a lot, it shouldn't be used by women who are pregnant, breastfeeding, or who have inflammatory bowel diseases. The right labels warnings about these side effects should be put on products. Supplement forms usually come with daily dose suggestions ranging from 10 mg to 50 mg. Higher amounts should only be used for short-term therapeutic purposes under the supervision of a medical professional. When formulators make product specs and label claims, they need to keep these things in mind.

Partner with Sigma for Pharmaceutical-Grade Aloe Emodin Extract

Shaanxi Sigma Biotechnology is an expert at sending high-purity Aloe Emodin Extract to North American and European markets that meets the strict requirements of drug companies, vitamin brands, and beauty formulators. Our factory is in China's best botanical area and has ISO 22000, HACCP, and Kosher certifications, along with decades of experience in extracting oils. This makes sure that every batch is at least 98% pure and can be tracked from farming to final packing.

As a full-service provider of Aloe Emodin Extract, we keep a lot of stock on hand so that we can quickly fill pressing orders. We also offer OEM/ODM services for custom purity grades, particle specs, and private labeling needs. Technical support teams help with things like improving formulations, making regulatory paperwork, and following stable testing procedures. These are all part of full relationship services that go beyond just selling products. You can email our supply chain experts at sarah@sxsigma.com to ask for a sample analysis, talk about pricing models for larger orders, or find out how our pharmaceutical-grade extracts can help your product creation process.

References

1. Zhang L, Tizard IR. Activation of a mouse macrophage cell line by acemannan: the major carbohydrate fraction from Aloe vera gel. Immunopharmacology. 1996;35(2):119-128.

2. Beppu H, Shimpo K, Chihara T, et al. Antidiabetic effects of dietary administration of Aloe arborescens Miller components on multiple low-dose streptozotocin-induced diabetes in mice. Journal of Ethnopharmacology. 2006;103(3):468-477.

3. Hutter JA, Salman M, Stavinoha WB, et al. Antiinflammatory C-glucosyl chromone from Aloe barbadensis. Journal of Natural Products. 1996;59(5):541-543.

4. Dong X, Zeng Y, Liu Y, et al. Aloe-emodin: a review of its pharmacology, toxicity, and pharmacokinetics. Phytotherapy Research. 2020;34(2):270-281.

5. Boudreau MD, Beland FA. An evaluation of the biological and toxicological properties of Aloe barbadensis (Miller), Aloe vera. Journal of Environmental Science and Health Part C. 2006;24(1):103-154.

6. Chen YY, Yen YT, Lin SY, et al. Emodin as a potential agent for biofilm disruption of Staphylococcus epidermidis. Journal of Microbiology, Immunology and Infection. 2018;51(3):313-320.
